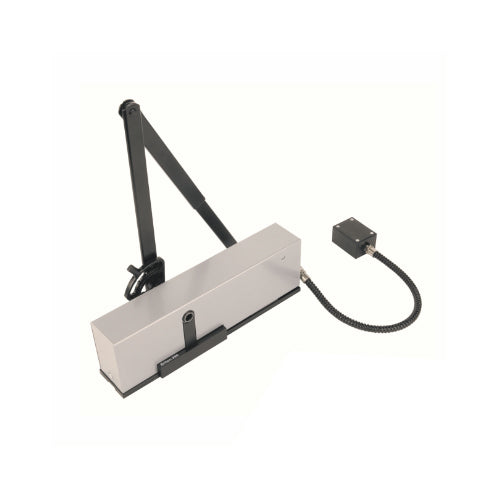

Briton 996 Electro Magnetic Hold Open Door Closer

Briton 996

A series door closers with an integrated electromagnetic hold open mechanism. Typically used on fire rated doors where the hold-open or swing-free feature is required.

• Fixed power size EN 3
• Satisfies the requirements of Approved Document M
• Suitable for doors up to 950mm wide and 60kg (9963), 1110mm wide and 80kg (9964), 1250mm wide and 100kg (9965)
• Certified for door, frame and parallel mount applications
• Dual function can be set to operate in hold-open or swing-free at the point of installation
• Adjustable closing speed & latch action
• Fitting template for quick and easy installation
• Designed for use on low voltage circuits 24v DC linked to a fire alarm
• Supplied with armset and brackets for regular or transom mounting (for parallel mounting please specify when ordering)
• Electromagnet is controlled by the building fire alarm/detector and activates the ‘catch plate’ to ensure the door closes automatically in the event of a fire or power failure.
• Optional rear entry cable allows units to be installed with concealed cable via a concealed loop to protect the closer against vandalism.
• Supplied with flexible armoured power loop (330mm long as standard) to run power safely from the door frame to the closer

CERTIFIRE Approved CF109
