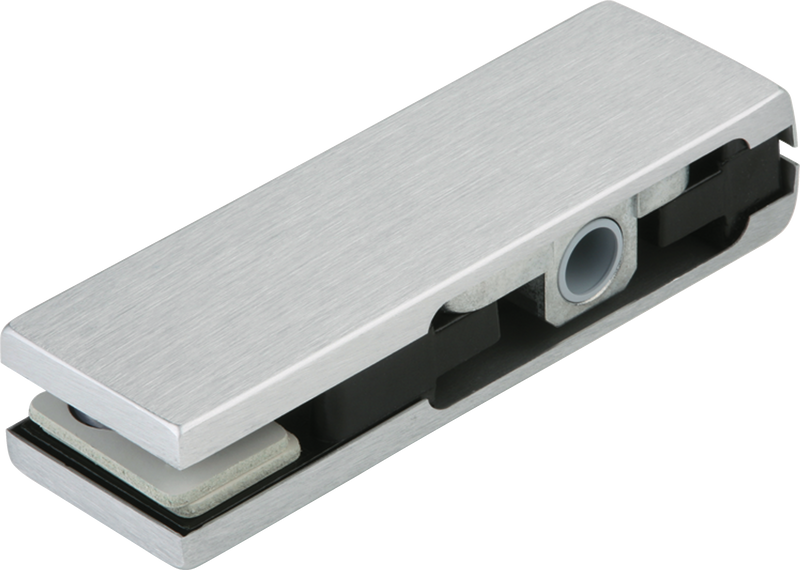

Universal PT20 Top Patch

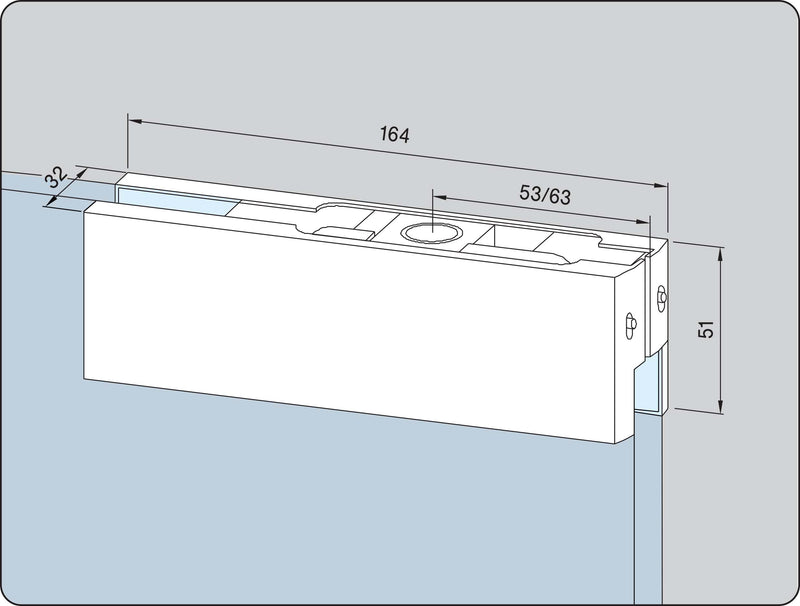

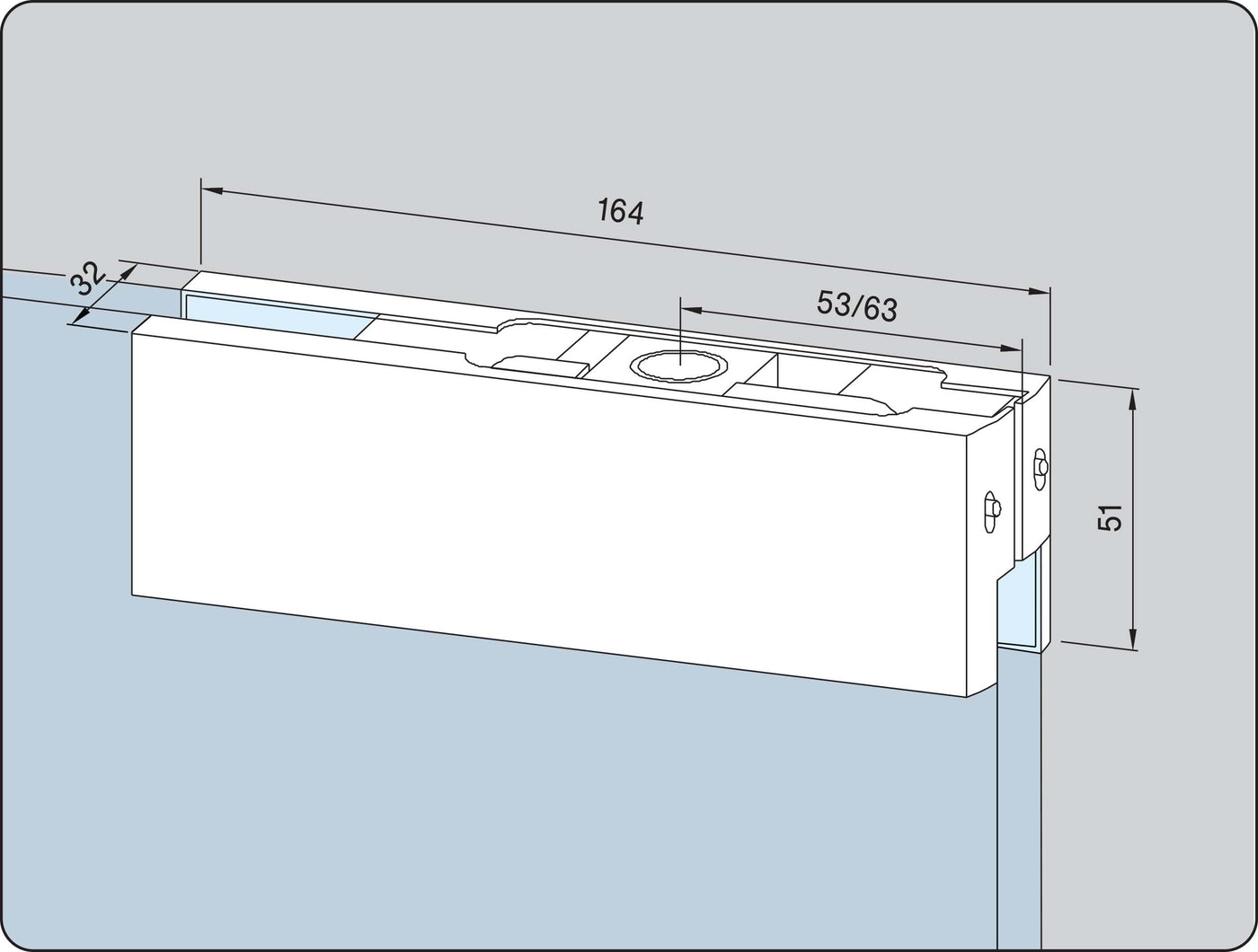

Universal PT20 top patch for frameless glass door systems. The top patch mounts to the top of the glass door leaf and provides the upper pivot point for the door to swing on. Compatible with a 15mm pivot pin. Selectable pivot centre at 53mm or 63mm to suit different frame configurations. For use with 10mm or 12mm glass thickness.

Key Features

• Selectable pivot centre: 53mm or 63mm
• For use with 10mm or 12mm glass
• Compatible with 15mm pivot pin

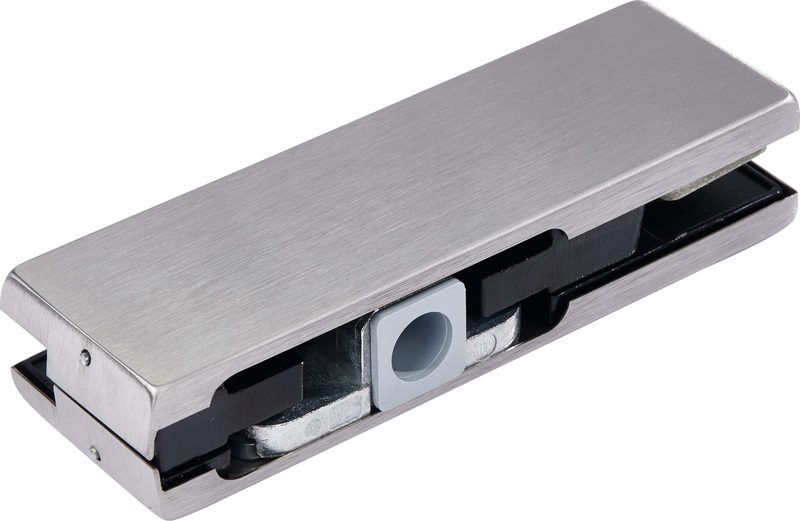

• Available in satin anodised aluminium and satin stainless steel finishes
