Trimec ES8100 V-Lock 118001-010

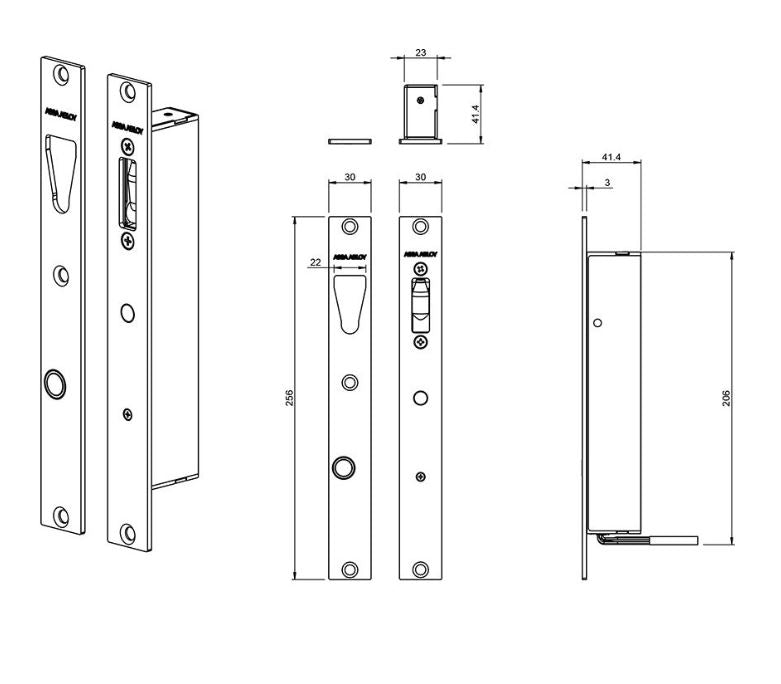

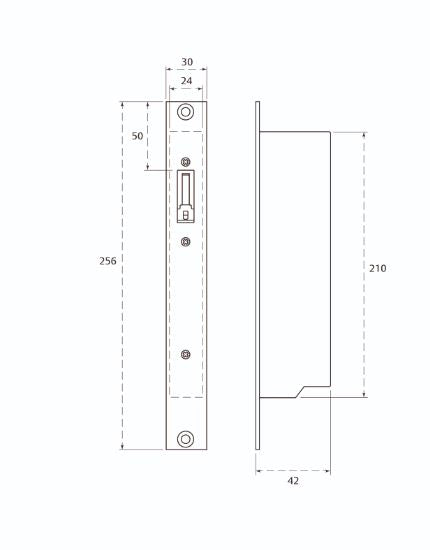

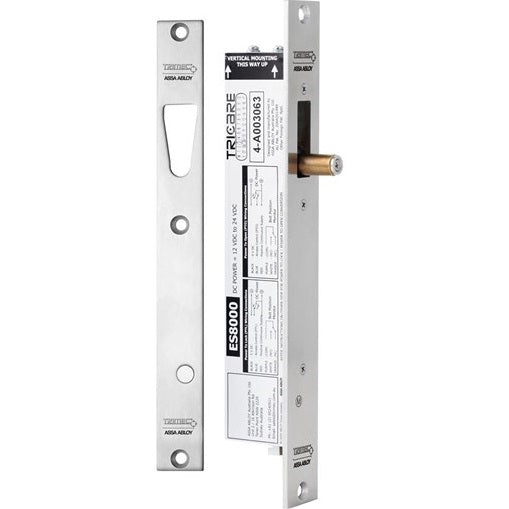

The Trimec ES8000, also known as the V-lock is a high torque motorised bolt that moves from the vertical position to the horizontal state when locked. The bolt moves into the V shaped strike plate pulling the door aligned with the lock. The high torque motorised bolt can be concealed from view or surface mounted and has the worlds first fail-open motor locking mechanism. Slim design with classic satin stainless steel faceplate, and significant 7mm overall (+/- 3.5mm) door misalignment tolerance make ES8000 a product with great aesthetic appearance as well as easy installation.

Features

• SIDE LOAD - PRE LOAD Capable
  Lock will unlock with up to 15kg of side pressure, when wired in 3 wire mode. (1 x Permanent Power, (positive 12-24Vdc) wire. Negative (0 volt return) wire, and 1 x Switching input (positive 12-24Vdc) wire
• Door misalignment of up to 3.5mm +/-
• Power to Lock (Fail Safe) / Power to Open (Fail Secure) field configurable
• HIGH TORQUE Motorised locking and unlocking (3 wire mode)
• High Speed Operation. Unlocks in less than 1 second
• Surface Mount Accessory Kit. Ideal for 180° swing through glass door applications
• Multiple Orientation - Interior Doors Can be mounted vertically or horizontally (For exterior doors due to possible water ingress the ES8000 must be mounted horizontally)

Applications

• Misaligned doors
• Timber doors
• Glass doors

Standards and Compliance

• SCEC Endorsed (Intruder Resistant Bracket Required)
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 Part 1: Fire resistant door sets).
• CE Approved
