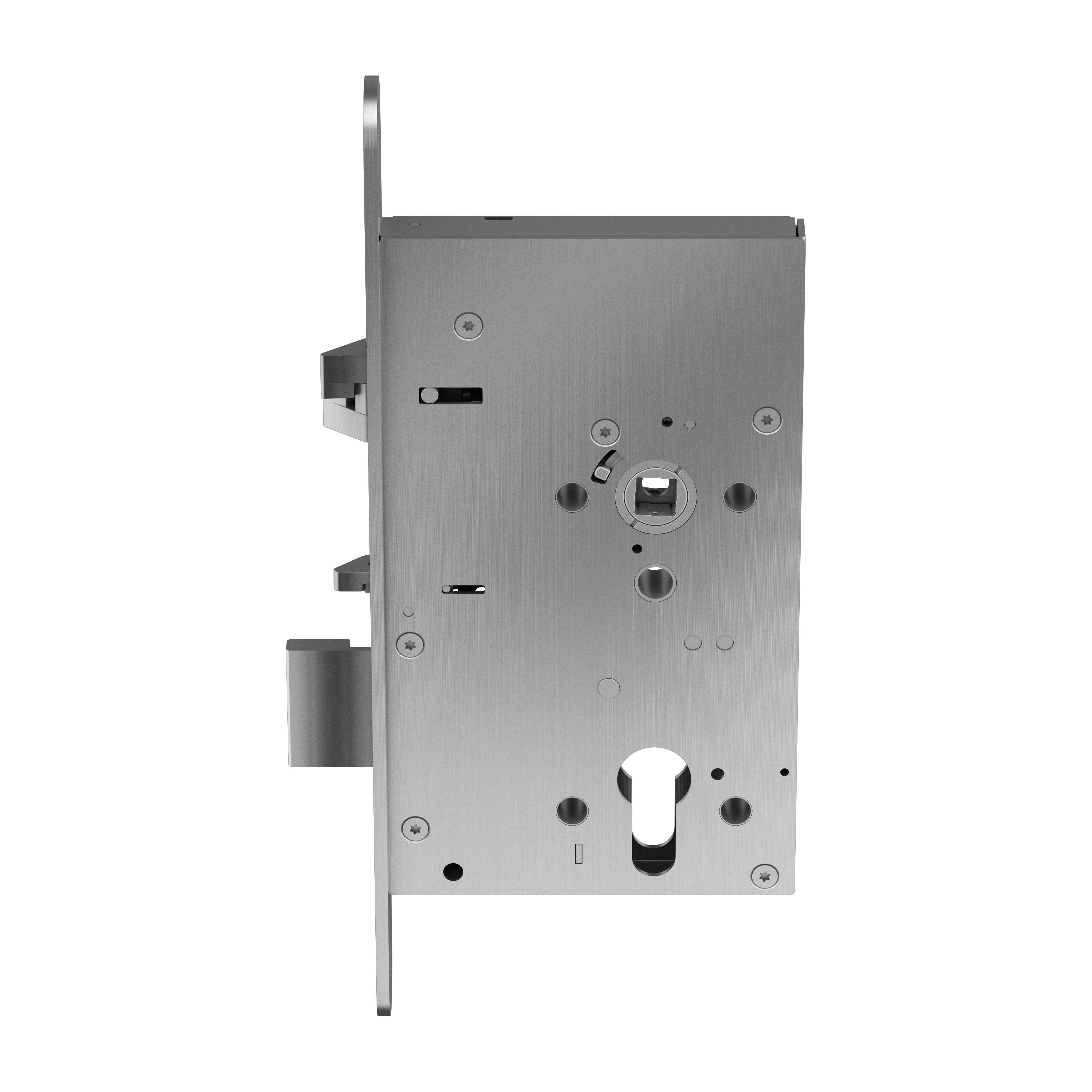

SVP 6000 VB Solenoid Controlled Emergency Escape Lock

SVP 6000 VB Solenoid Controlled Emergency Escape Lock

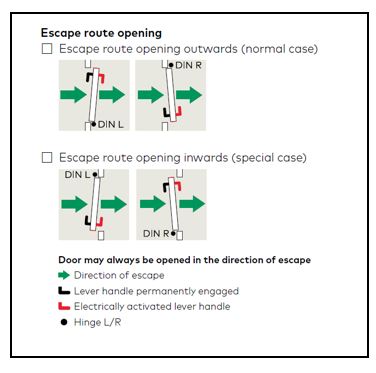

The SVP 6000 VB locks automatically lock doors after each closing cycle – offering the ultimate in both convenience and security. The automatic deadbolt projection of 20mm ensures that the door is always securely locked. The additional anti-thrust engagement of the clawbolt latch provides two-point locking for enhanced security. Meanwhile, the emergency escape function means that the door can be opened at any time in the exit direction by simply operating the lever handle or panic bar. Mechanical opening from the outside remains possible at any time via a key to unlock the euro profile or round cylinder insert.

• For wide stile doors
• Access Controlled external lever handle
• Universal trip latch
• Automatic relocking action
• Models: Fail-secure / Fail-safe selectable
• With feedback contacts to signal door status
• Emergency escape/panic function in accordance with BS EN 179 & BS EN 1125 *
• Certified in accordance with BS EN 14846
• CERTIFIRE approved CF 5342
• 12/24V DC detectable
  • Supply voltage 12 or 24 V DC stabilised (+/- 10%)
  • Power input 0.15 A (max. 0.3 A)
  • Maximum load current max. 30 V DC, 100 mA
  • Status messages via potential-free contacts
