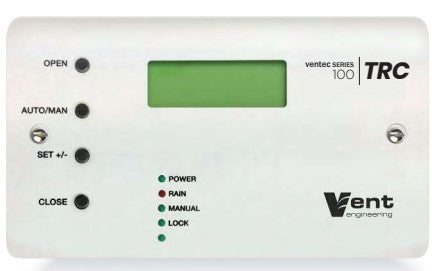

Ventec 100 Series Controller

The Ventec 100 Series is a thermostatic and rain-sensing controller for automated window ventilation systems, most commonly used with TOPP ACK5 chain window actuators in conservatories, schools, offices, and commercial buildings. The controller monitors both temperature and rainfall, automatically opening windows when the interior becomes too warm and closing them immediately when rain is detected — maintaining comfortable, dry conditions without manual intervention.

The flush or surface-mounted housing is suitable for internal installation. A detachable external rain sensor is included and positioned outside to detect rainfall. The built-in 5-minute delay after the rain sensor dries prevents unnecessary repeated opening and closing cycles. Separate user and installer menus allow straightforward initial setup by the installer while keeping advanced settings protected.

Key Features

• Thermostatic control — opens windows automatically when temperature threshold is reached
• Rain sensing — closes windows automatically when rain is detected
• External detachable rain sensor — easy to clean and reposition
• 5-minute delay after rain sensor dries — prevents unnecessary cycling
• Flush or surface mounting — suitable for most wall types
• Separate user and installer menus
• 7-day timer mode available (requires additional equipment)
• Multiple zone control for larger projects
• BMS input for integration with building management systems
• IP55 rated

Technical Specification

• Power input: 230V
• Protection rating: IP55
• Compatible actuators: TOPP ACK5/MAC4, Mingardi, UCS

Compatible Products

The Ventec 100 is designed for use with TOPP ACK5 and MAC4 chain window actuators. For the actuators themselves, see our TOPP ACK5/MAC4 Chain Actuators page.
